MONOLITH C1

pengira wang

banknote counter
uv + mg detection

TRY THE C1

This is the control face, working. The hopper holds 120 RM 50 notes and two of them are fake. Press START and see what UV and MG catch.

COUNT0PCS

TOTAL0RM

START: Runs the stack. Press again to pause. Dropping notes in the hopper starts it on its own.
UV: Checks every note under ultraviolet light. Stops on a note that glows wrong.
MG: Reads the magnetic ink. Stops on a note that has none.
BATCH: Stops every 10 to 100 notes so you can band them. Set the size with + and −.
ADD: Keeps a running total across stacks instead of starting from zero.

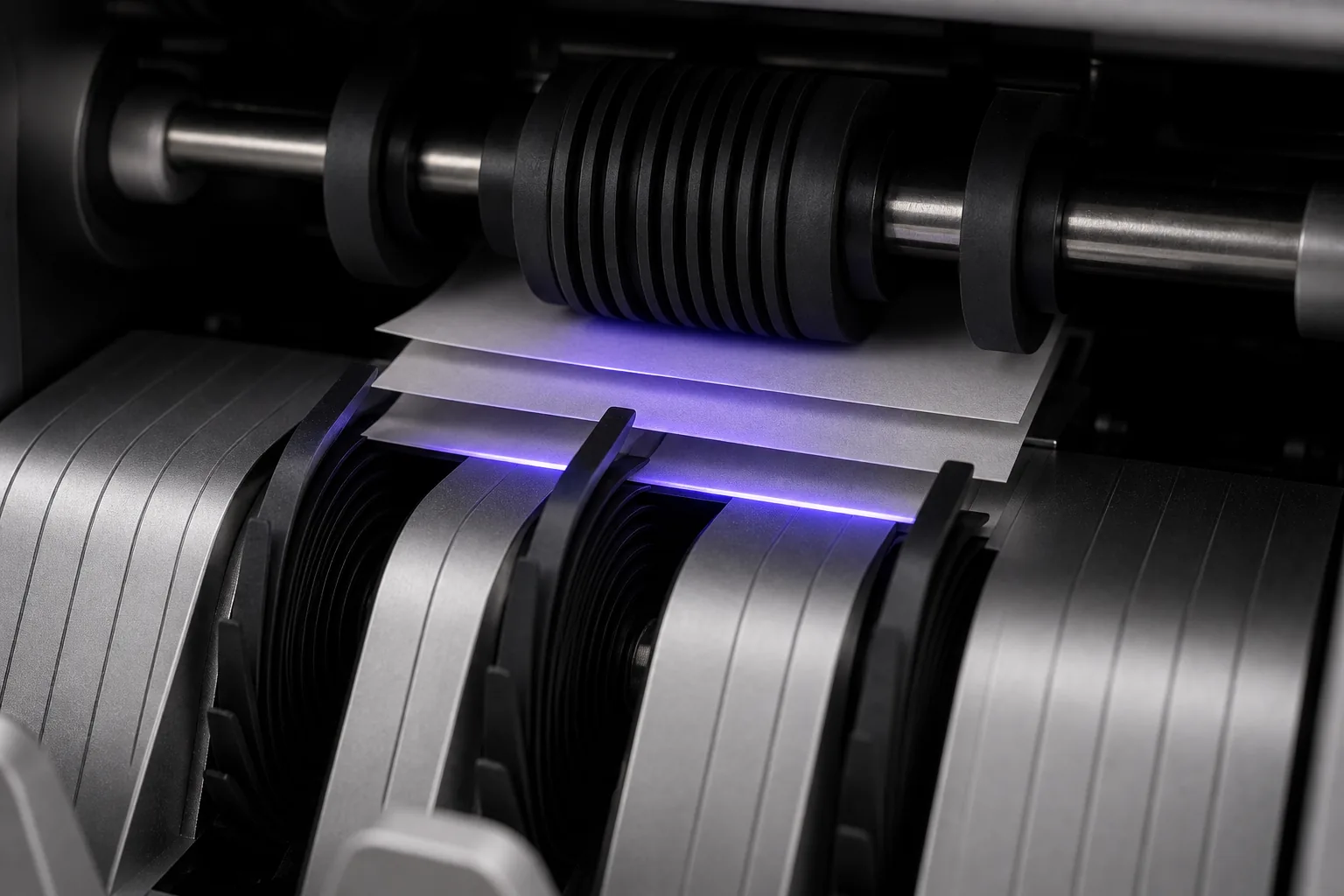

Macro of the counting path: rubber rollers, note guides and the UV line

EVERY NOTE, UNDER THE LIGHT

Rubber rollers pull one note at a time past the UV lamp and the magnetic head. A fake stops the machine with the note still on top of the stacker, so you know which one it is.

ALL SIDES

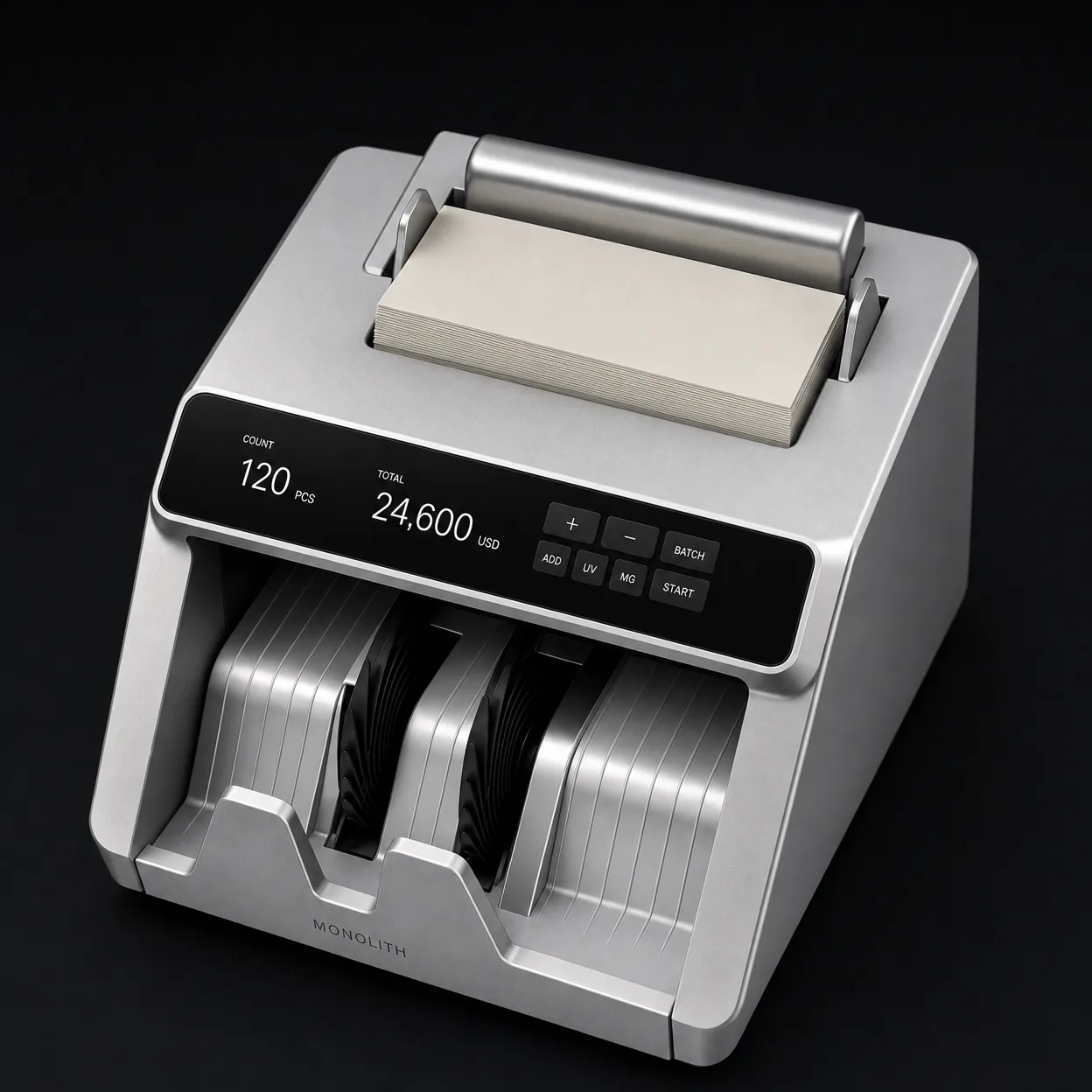

topstack drops in, count starts

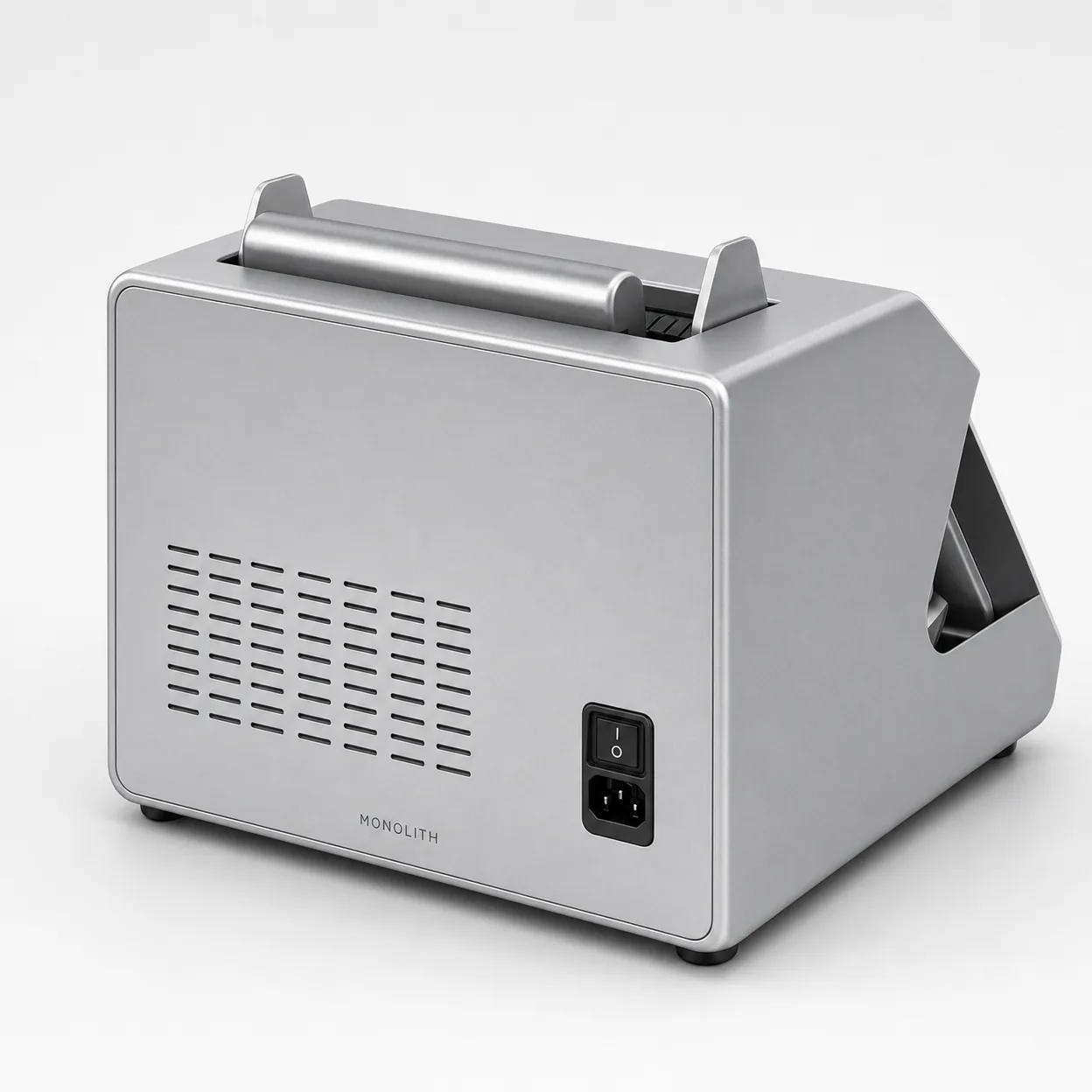

backvent grid, switch, power inlet

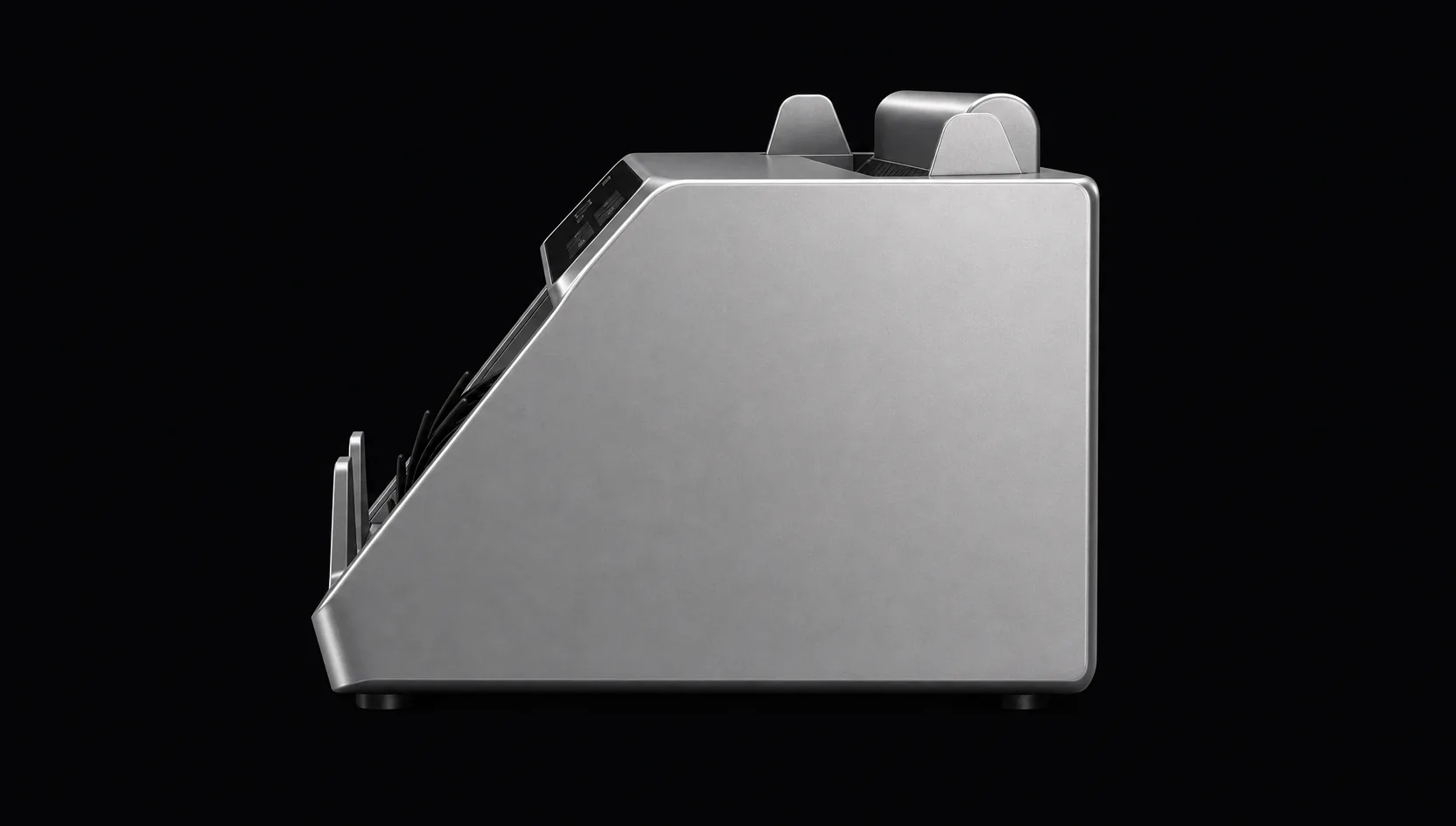

sideone wedge, no seams

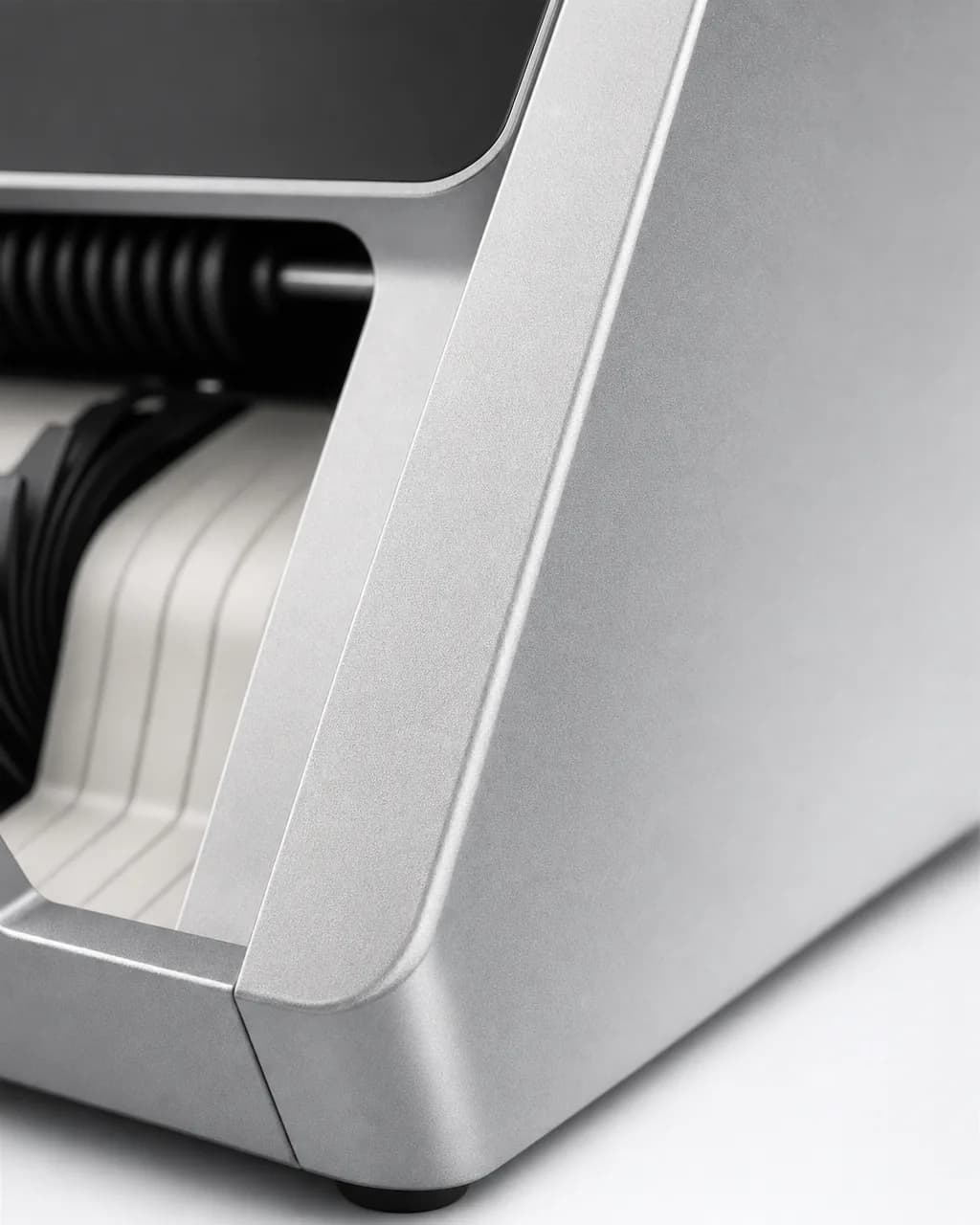

edgebead-blasted, chamfered

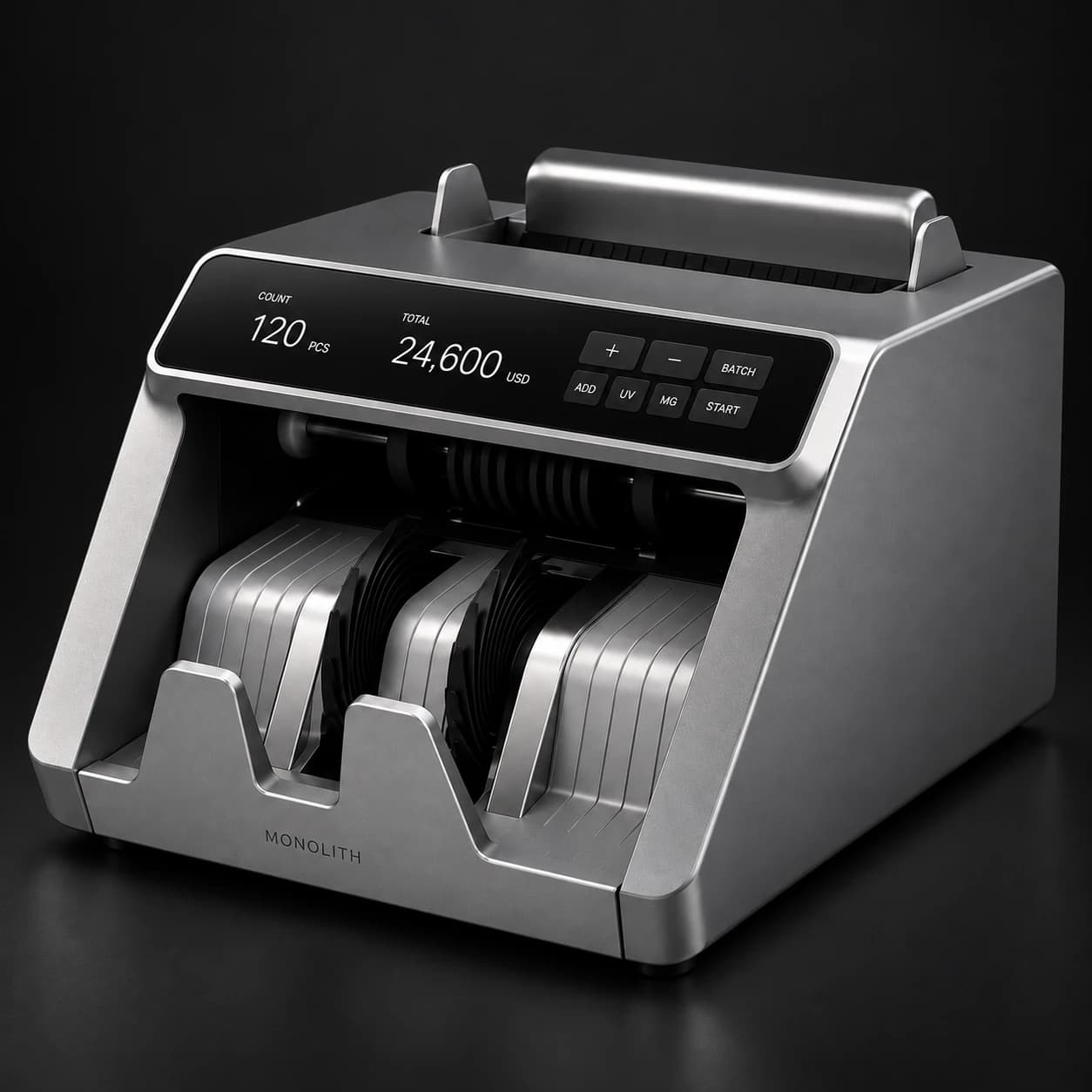

frontdisplay and seven keys

SPECS

Counting speed: Up to 1,200 notes/min*
Hopper capacity: 300 notes*
Stacker capacity: 200 notes*
Detection: UV / MG
Display: High-contrast digital display

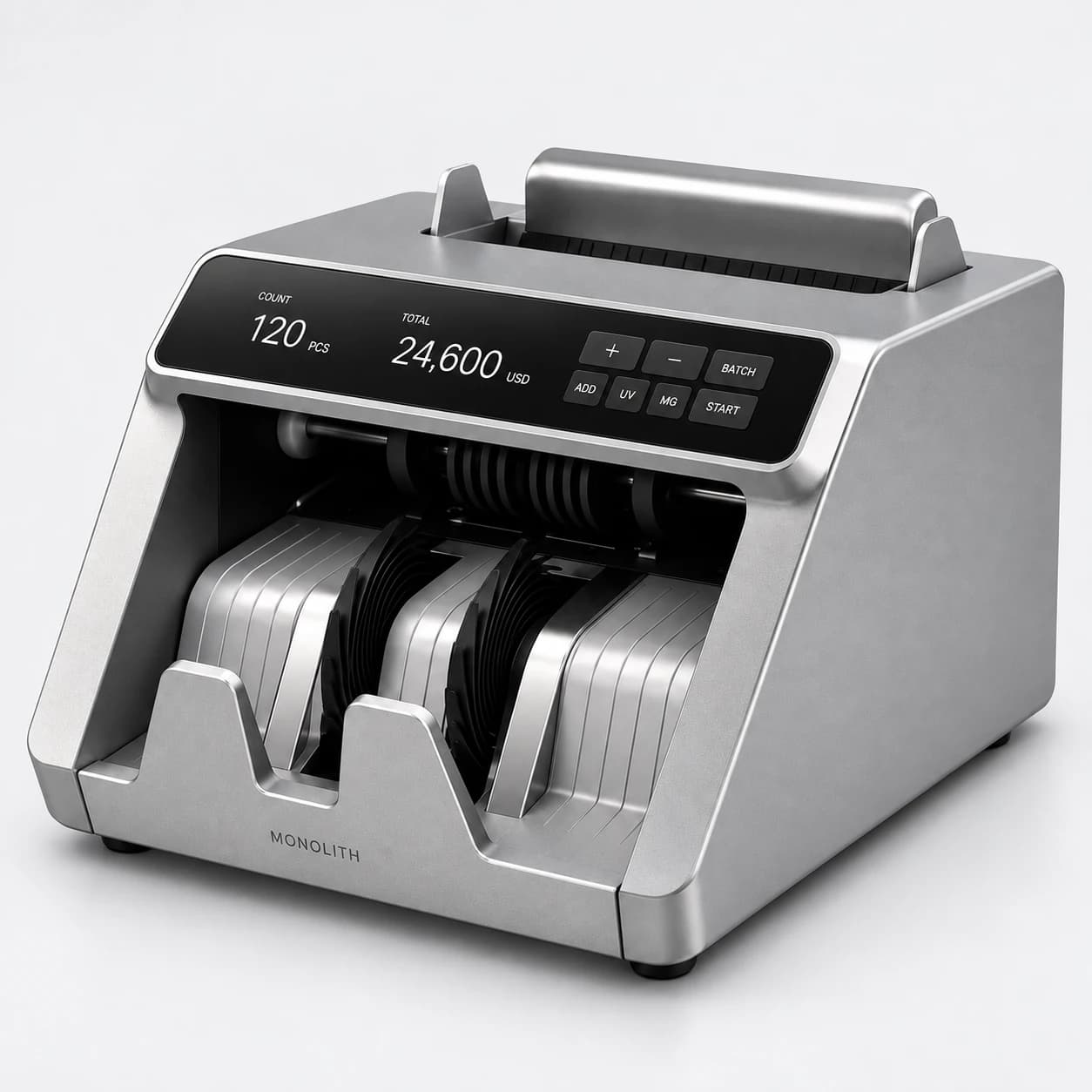

Construction: Machined aluminum enclosure
Power: AC input

* Concept targets. Nothing here has been built or tested yet.

ENQUIRE

The C1 is a concept. If you would make one, sell one or put one on your counter, we would like to hear from you.
